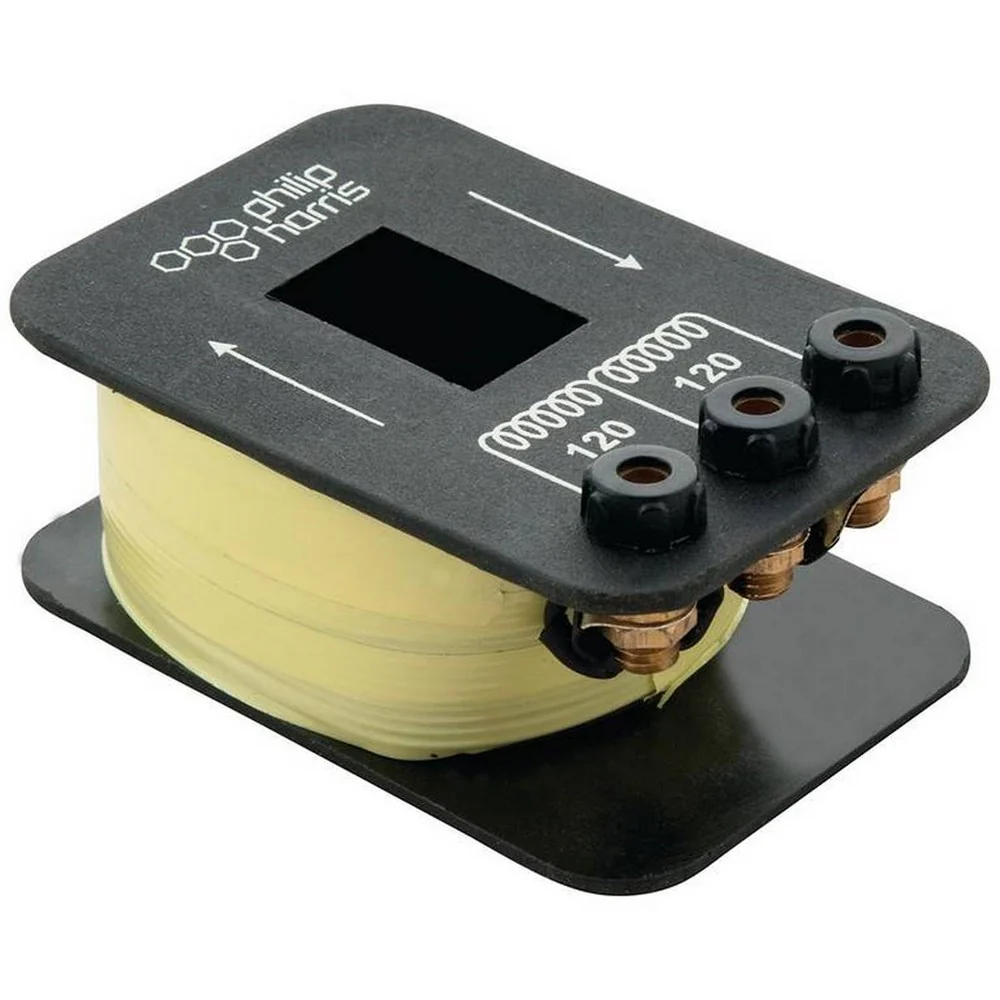

Transformer Coil 120 120 Turns
Silicon steel C-core and clip with a range of coils for use as inductors and transformers. The approximate inductance values, with and without a complete C-core, are shown in the table below. Current ratings are based on 150A per square cm. The coils will run hot, but will not be damaged by short-term currents of up to twice the stated value.
No. of Turns: 120 +120
Air-core - 1.5mH
Wire - 1.0mm
Max Current - 1.02A
Original: $117.39
-65%$117.39
$41.09Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Silicon steel C-core and clip with a range of coils for use as inductors and transformers. The approximate inductance values, with and without a complete C-core, are shown in the table below. Current ratings are based on 150A per square cm. The coils will run hot, but will not be damaged by short-term currents of up to twice the stated value.
No. of Turns: 120 +120
Air-core - 1.5mH
Wire - 1.0mm
Max Current - 1.02A
