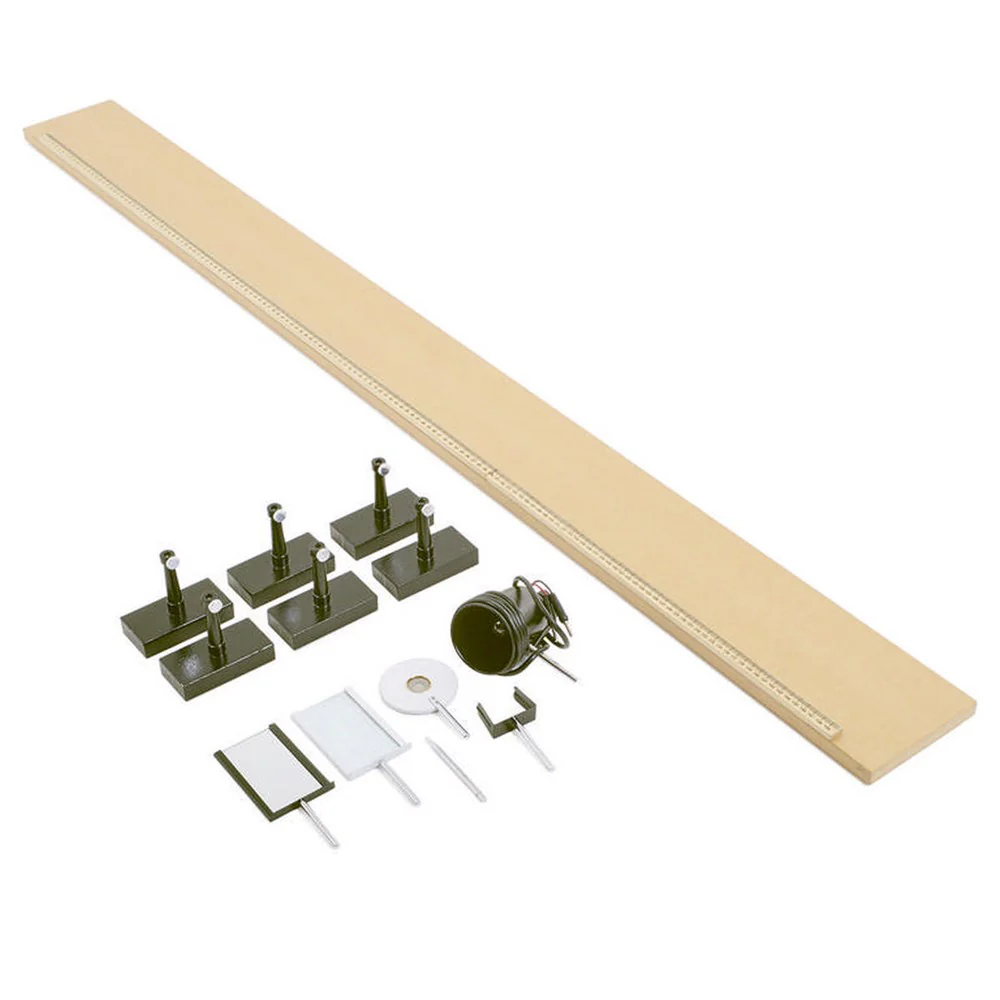

Optical Bench Wooden 1.5 Metre
Wooden baseboard 1.6m x 140mm with a 1.5m scale divided in mm plus 6 sliding moulded bases 100 x 50mm each with index line, brass pillar and locking screw. The following accessories are included:
• 1 12V, 24W S.B.C projection lamp with lead and 4mm plugs
• 1 white metal object screen 75mm in diameter with gauze
• 1 holder for lenses, 38mm diameter
• 1 white metal receiving screen, 100 x 75mm with a slot for squared paper screen on the reverse
• 1 object needle mounted in 6mm brass rod
• 1 Plane mirror in a metal frame 100 x 75mm
Each of the accessories is mounted on a 6mm brass rod which fits into the stands giving an optical height 125mm above the base board.
A power supply unit is required for the projection lamp.
